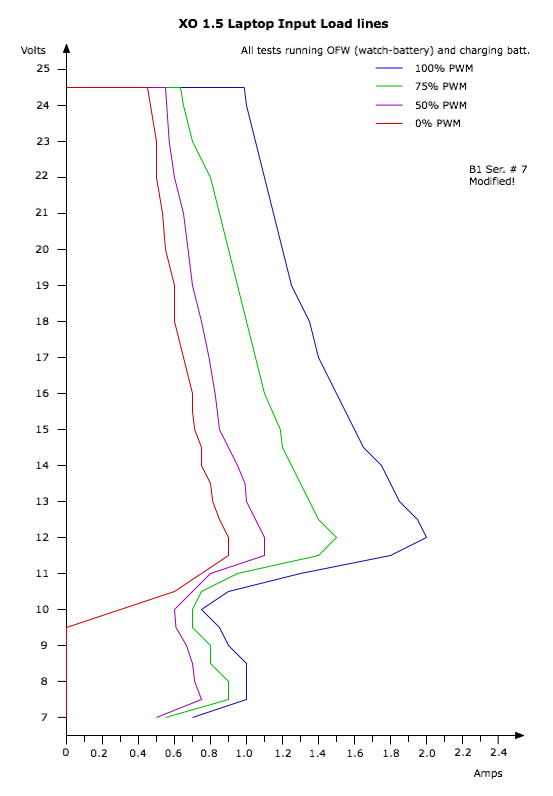

DC power input load line of an XO-1.5 B1 prototype with the proposed power ECO. The PWM values indicated were approximated using voltages, not using the actual EC PWM output for control.
This is not final, and is given only as an early example. See Media:XO-1.5_LoadLine_C3.png for a load line from a production XO-1.5 laptop.
