File:Oscilloscope cabling 2.PNG

Size of this preview: 800 × 143 pixels. Other resolution: 4,886 × 873 pixels.

Original file (4,886 × 873 pixels, file size: 611 KB, MIME type: image/png)

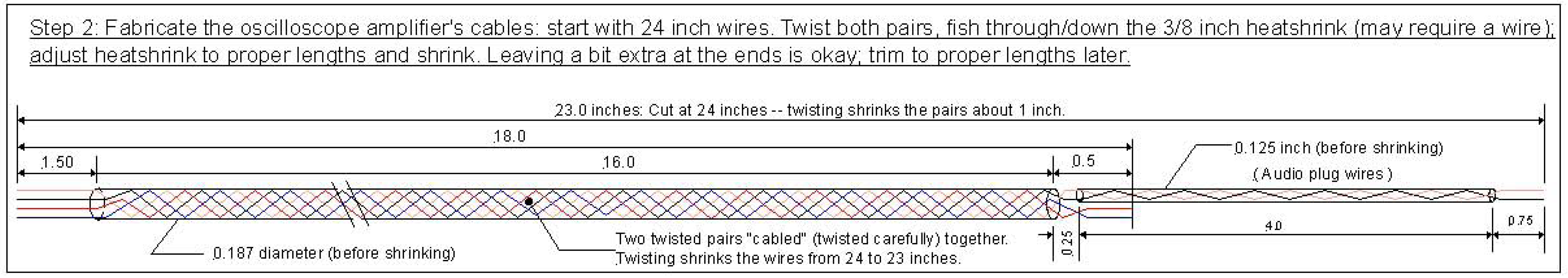

Original drawing by wvbailey in Autosketch 9, imported into Adobe Acrobat to trim, then exported as .png.

This software is licensed under the CC-GNU GPL.

(GNU General Public License)
