File:XO 1.75 Tinderbox C2.png

Error creating thumbnail: Unable to save thumbnail to destination

Original file (1,734 × 2,234 pixels, file size: 662 KB, MIME type: image/png)

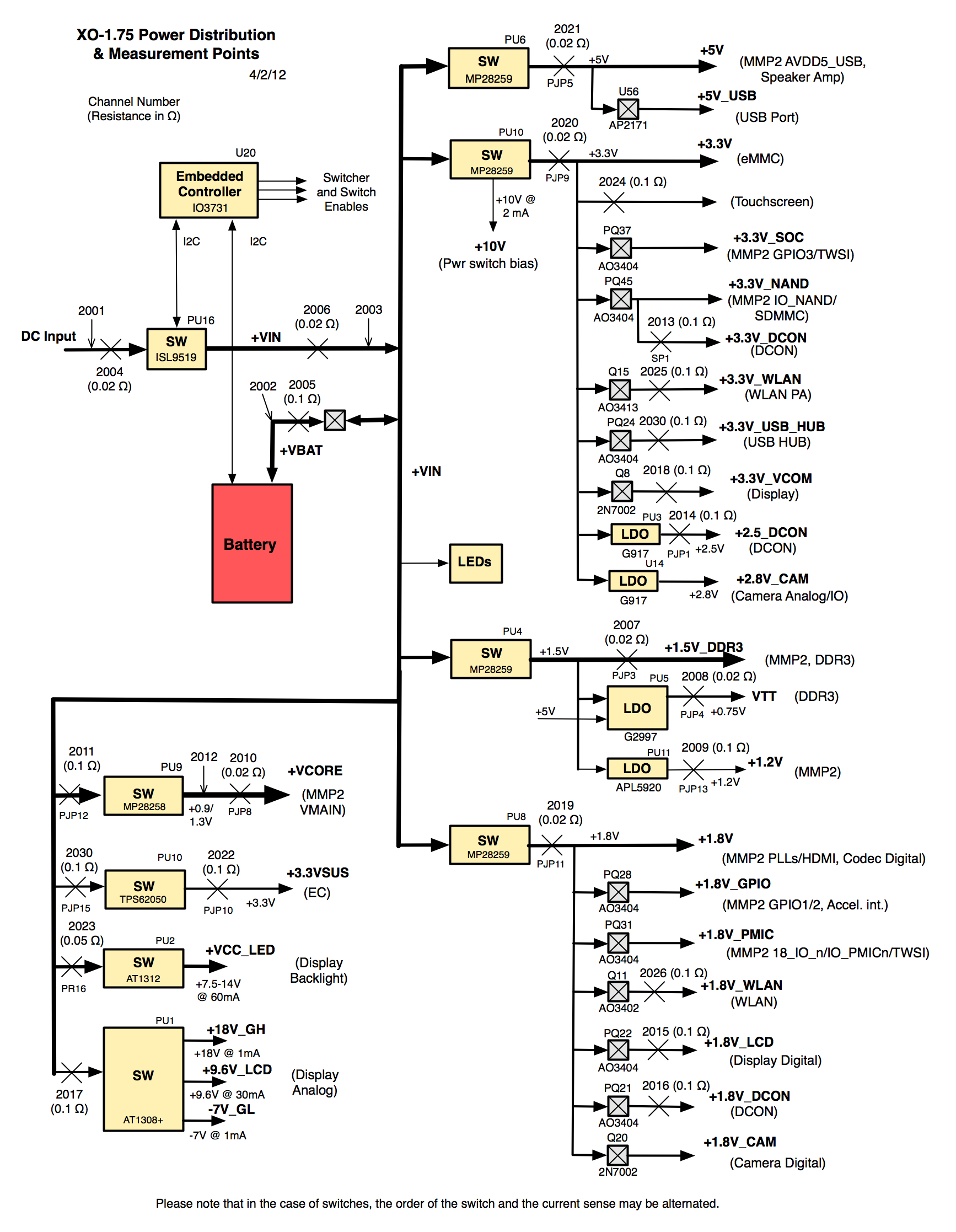

Power distribution diagram for XO-1.75 C2 version motherboard, including Tinderbox power measurement points.
