XOCad

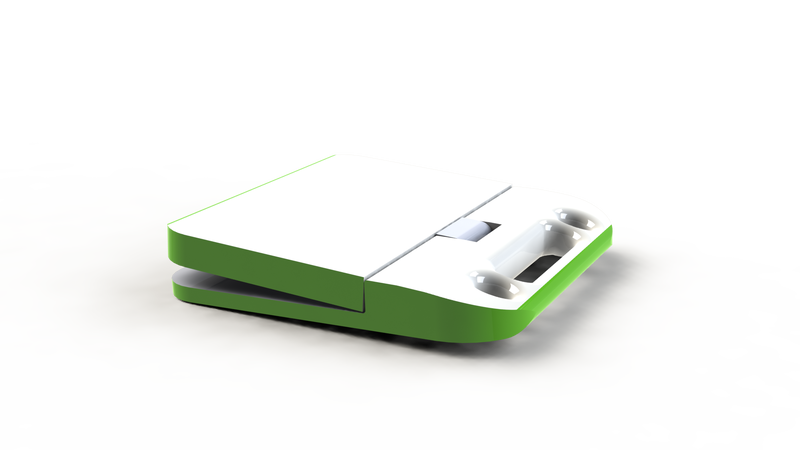

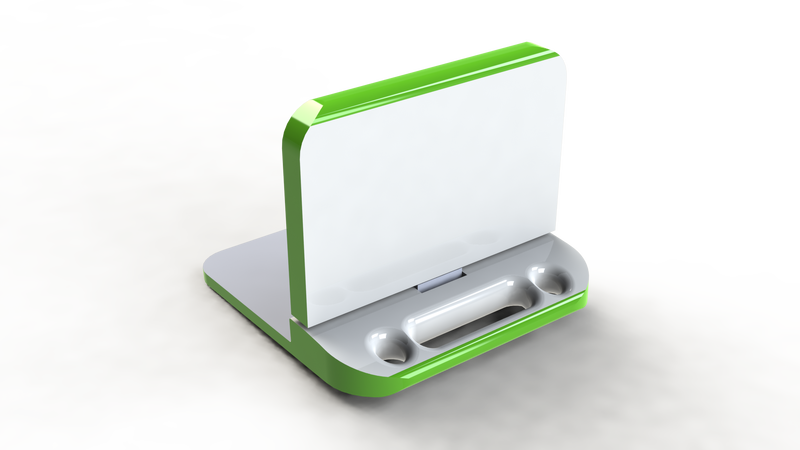

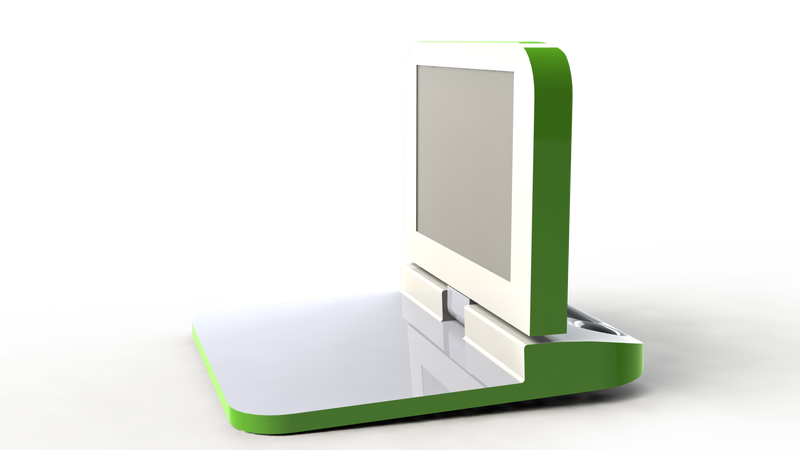

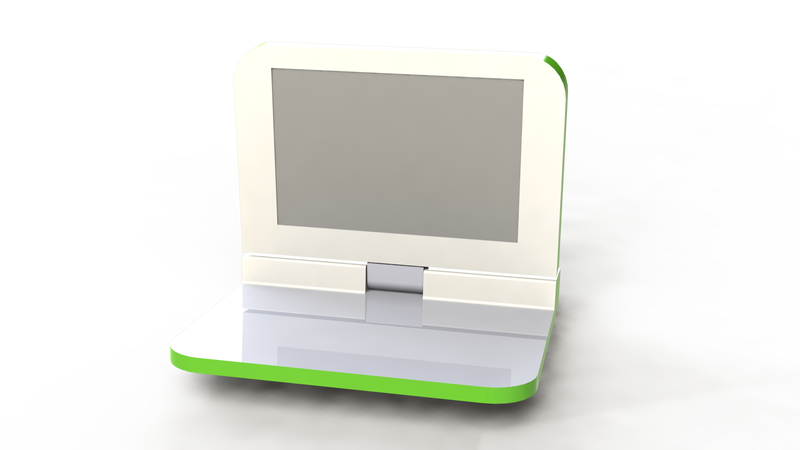

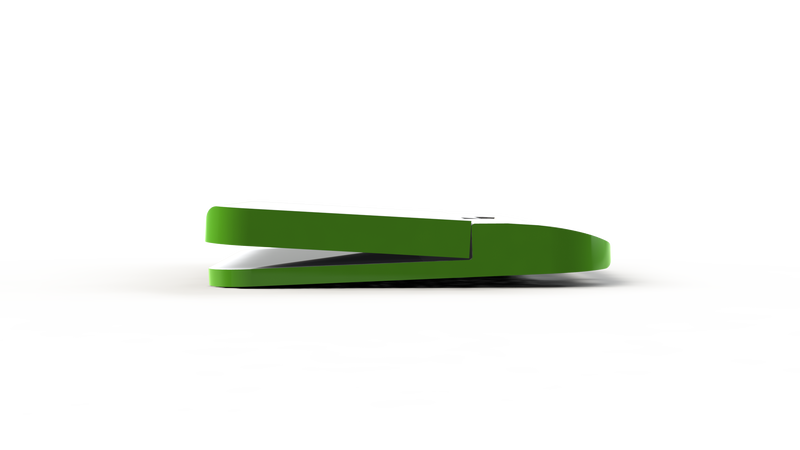

Simplified CAD of the XO.

Sadly no offical CAD of the XO is available, so I (--colinz 02:39, 1 November 2009 (UTC)) created a simplified version. Used by the Olin XOBot Project to create a robot motion frame that is the correct dimensions.

The handle dimensions are quite accurate (since the XOBot interfaces with this area of the XO). Many curves are not CADed but instead represented by a boxy XO shape. Dimensions should still be accurate, however.

Download the CAD files: http://wiki.laptop.org/images/b/b5/Zwiebel_xo_simple_CAD_v1.zip

Note: produced in SolidWorks, but includes exports to PART and PROE
