XO Power Diagram

  This page is monitored by the OLPC team.

english | español

HowTo [ID# 20387]  +/-

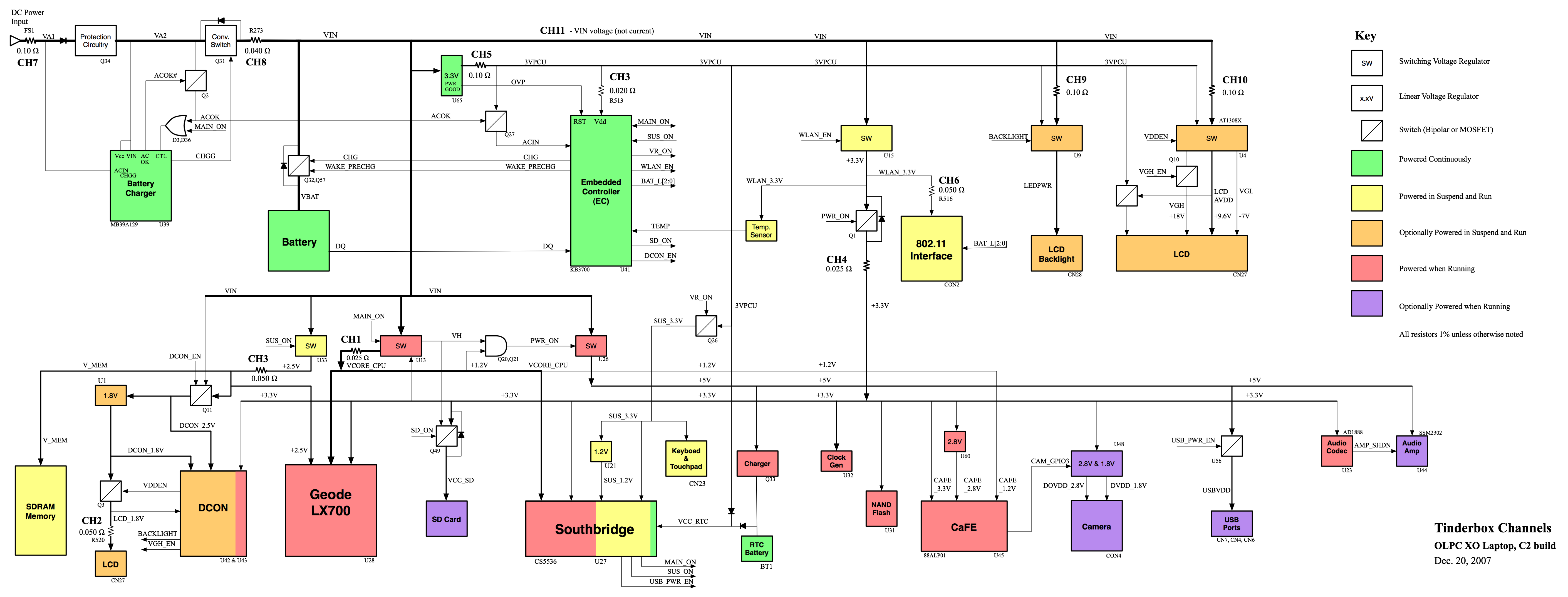

This is power distribution diagram for an XO-1 laptop:

This page is part of the troubleshooting guide and the power management documentation and indicates measurement channels (resistors) not present in production machines. See XO motherboard photo for the location of these blocks.
